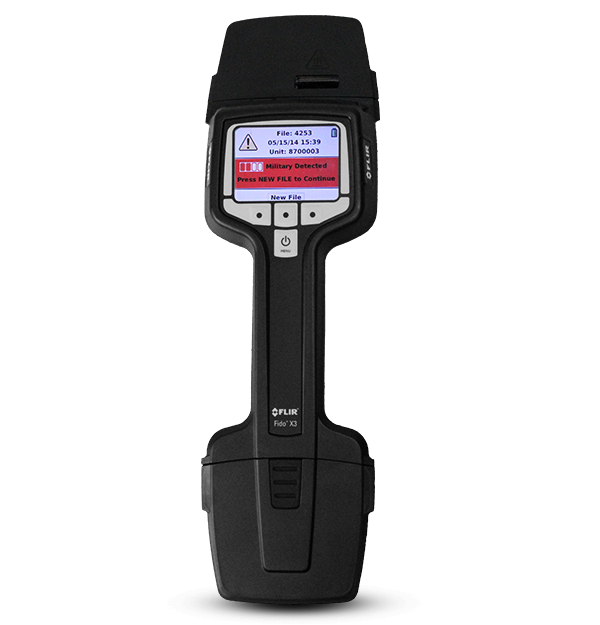

FLIR Fido X3

The FLIR Fido X3 explosives trace detector (ETD) expedites on-site decision making with ten-second threat reporting via intuitive, go/no-go alarms. Its rugged magnesium case and splash-proof seal meet rigorous MIL-STD-810G and IP54 specifications. Fido X3 starts from cold in five minutes, contains a long-lasting, eight-hour battery, and clears down in seconds. With thousands of units fielded in over 40 countries, Fido X3 is a trusted handheld explosives trace detector for critical security applications.

FAST, 10-SECOND ANALYSIS

Security officers can accurately screen for threats in sporting arenas, mass transit facilities, hotels, and other critical venues

BEST-IN-CLASS SENSITIVITY

FLIR’s patented TrueTrace technology detects homemade, commercial, and military explosives with higher sensitivity and faster clear-down than similar products.

SIMPLE, GUIDED OPERATION

On-screen prompts and go/no-go alarms aid operator with sampling and decision-making. On-device video tutorials reduce cost burden of recurrent training.

SPECIFICATIONS

SYSTEM OVERVIEW

Battery Specification
Two rechargeable Li-ion batteries (swappable and up to 8-hr battery life); adapter included
Description
Handheld Explosive Trace Detector
Enclosure & Protection
Molded magnesium and polymer composite casing with anti-corrosive coating
Technology
FLIR TrueTrace™; multi-channel fluorescence technology; no radioactive source
Threats
Detects military, conventional, homemade, and liquid explosives

ENVIRONMENTAL

Operating Temp & Humidity
14 to 122 °F (-10 to 50 °C) 5% to 95% non-condensing
Standards
ASTM™ E2520
Storage Temperature
-4 to 122 °F (-20 to 50 °C)

PHYSICAL FEATURES

Dimensions (L x W x H)
14.5 x 4.5 x 2.8 in (37.0 x 11.5 x 7.0 cm) – with battery
Weight
3.0 lbs (1.4 kg)

POWER

Input Voltage
100-240 VAC (wall adapter supplied)
Start Up Time
< 5 minutes from cold; < 10 seconds from sleep

SAMPLING & ANALYSIS

Sample Introduction
Direct vapor for bottled liquids or sampling swipes for surfaces
Sample Phase
Vapor and trace particulate

SYSTEM INTERFACE

Communication
USB; optional embedded wireless; Windows®-based software
Data Storage
3,500 hours of continuous data logging
Display & Alerts
Visible, audible, and haptic(vibration) alerts; vivid, sunlight-readable color display (32k colors)
Localization
Language translation available worldwide
User Levels
Operator and Administrator
